Can Optical Reflectors Improve LED Lighting Efficiency?

LED lighting has transformed modern illumination with its energy efficiency, long lifespan, and versatility. However, maximizing the effectiveness of LED systems depends not only on the quality of the LEDs themselves but also on how the emitted light is directed and utilized. One key component that plays a crucial role in this process is the optical reflector.

Understanding Optical Reflectors

An optical reflector is a surface designed to redirect light. Unlike a simple mirror, which may reflect light without shaping it, optical reflectors are carefully engineered to control the path and spread of light. In LED systems, reflectors are often positioned around the light source to redirect emitted photons toward desired directions, reduce wastage, and improve illumination uniformity.

Reflectors come in various shapes and materials, including:

• Parabolic reflectors: Focus light into a directed beam.
• Elliptical reflectors: Spread light evenly over a target area.
• Flat or planar reflectors: Redirect light without focusing.
• Metallic vs. dielectric coatings: Influence the efficiency and spectrum of reflected light.

How Optical Reflectors Enhance LED Efficiency

1. Directing Light More Effectively

LEDs emit light in a wide angle, which is often only partially useful. For instance, in a downlight fixture, light emitted sideways or backward does not illuminate the intended area. By using a reflector, more of the light can be redirected forward, increasing usable lumens without increasing power consumption. This is especially significant in applications like streetlights, spotlights, and automotive headlights.

2. Reducing Light Loss

Without reflectors, a significant portion of LED light may escape the fixture or be absorbed by surrounding components. Optical reflectors minimize this loss by capturing stray light and redirecting it, effectively boosting the efficiency of the system. Studies have shown that integrating well-designed reflectors can increase overall light output by 10–30%, depending on fixture design.

3. Enhancing Light Uniformity

Optical reflectors also improve the distribution of light, preventing hotspots or uneven illumination. This is particularly valuable in office lighting, retail displays, and photography, where uniform brightness is essential. By shaping the light pattern, reflectors can ensure that every part of the target area receives appropriate illumination without unnecessary glare.

4. Supporting Thermal Management

Some reflectors, particularly metallic ones, can also aid in heat dissipation. LEDs are sensitive to temperature, and excessive heat can reduce efficiency and lifespan. While the primary purpose of reflectors is optical, certain designs contribute indirectly to thermal management, helping maintain LED performance.

Types of Reflectors Used in LED Lighting

Different LED applications require different types of reflectors. Choosing the right type can significantly impact efficiency:

Parabolic Reflectors

• Focus light into a tight, directed beam.
• Common in flashlights, spotlights, and stage lighting.
• Provide high luminous intensity in a specific direction.

Elliptical or Freeform Reflectors

• Spread light evenly over a target area.
• Suitable for general lighting and decorative applications.
• Minimize dark spots or glare.

Diffuse Reflectors

• Scatter light for softer illumination.
• Often used in office or residential lighting to create a uniform glow.
• Useful in applications requiring minimal shadows.

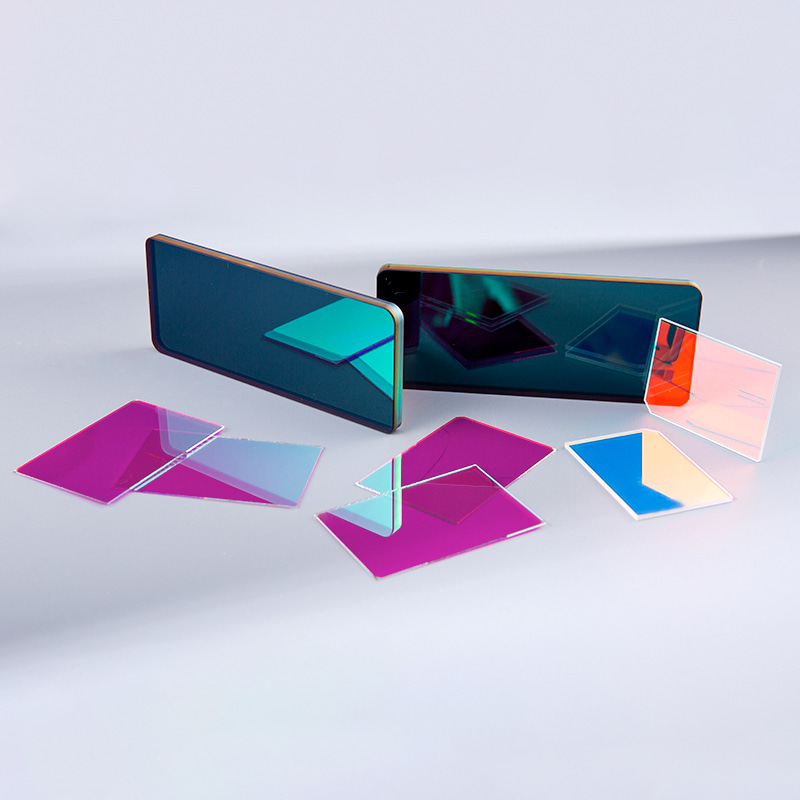

Metallic vs. Dielectric Coatings

• Metallic reflectors: Typically made of aluminum or silver, offer broad-spectrum reflection and durability.
• Dielectric reflectors: Multi-layer coatings that achieve high reflectivity in specific wavelength ranges. Useful in color-sensitive applications.

Practical Considerations for Implementation

While optical reflectors can improve LED efficiency, their design and integration require careful planning.

1. Reflector Shape and Geometry

The shape of the reflector determines how light is directed. Improperly designed reflectors may cause glare, hotspots, or uneven illumination, reducing efficiency gains. Advanced simulation tools can model light paths to optimize reflector design.

2. Material Selection

Reflector material affects reflectivity and lifespan. Aluminum is popular due to its high reflectivity, low cost, and durability. Plastic reflectors with reflective coatings are lighter but may degrade faster under heat. Dielectric coatings can achieve higher reflectivity for specific wavelengths but may increase cost.

3. Surface Finish

A smooth, polished surface ensures maximum specular reflection. Rough surfaces scatter light, reducing efficiency but sometimes producing a desired diffuse effect. The finish must match the intended application.

4. LED-Reflector Integration

Effective integration between the LED source and the reflector is crucial. The distance, alignment, and angle of the reflector relative to the LED chip determine how efficiently light is redirected. Poor alignment can negate any efficiency gains.

Real-World Applications

Street and Outdoor Lighting

LED streetlights often incorporate parabolic or freeform reflectors to maximize light coverage while reducing light pollution. Proper reflector design ensures that roads and sidewalks receive adequate illumination without wasting energy on surrounding areas.

Automotive Lighting

Car headlights use reflectors to produce focused beams that illuminate the road ahead. Modern LED headlights rely on precise reflector geometry to achieve high luminous efficiency while avoiding glare for other drivers.

Commercial and Residential Fixtures

Downlights, panel lights, and track lights use reflectors to improve brightness and uniformity. Reflectors reduce the number of LEDs needed to achieve the same lighting level, contributing to energy savings.

Specialized Applications

In photography, studio lighting, and horticultural lighting, reflectors shape light to achieve desired effects. Even in laser and optical systems, reflectors can enhance light efficiency and directionality.

Limitations and Challenges

While optical reflectors are highly beneficial, they are not a universal solution:

1. Cost vs. Benefit: High-quality reflectors may increase fixture costs. In some low-power applications, the efficiency gain may not justify the added expense.
2. Design Complexity: Reflectors require careful design to avoid glare or unwanted light scattering. Improper design can reduce efficiency rather than improve it.
3. Maintenance: Reflectors can accumulate dust or degrade over time, reducing their effectiveness. Regular cleaning may be necessary, especially in outdoor or industrial environments.
4. Thermal Constraints: Some reflective materials may degrade under high LED temperatures, impacting long-term performance.

Conclusion

Optical reflectors can significantly improve LED lighting efficiency by redirecting light, minimizing loss, and enhancing uniformity. When designed and integrated correctly, reflectors allow lighting systems to achieve higher lumen output with the same power consumption, improving both energy efficiency and visual performance.

The effectiveness of a reflector depends on material, shape, finish, and integration, and the best choice varies with application. While reflectors are not a cure-all, they are a practical and proven tool for maximizing LED performance, particularly in streetlights, automotive headlights, commercial lighting, and specialized optical systems.

By understanding the principles of reflection and selecting the right type of reflector, lighting designers and engineers can make LED systems brighter, more uniform, and more energy-efficient, ultimately delivering better lighting while reducing electricity consumption.
